Hidrauliskā prese 100T M/H-M/C-2

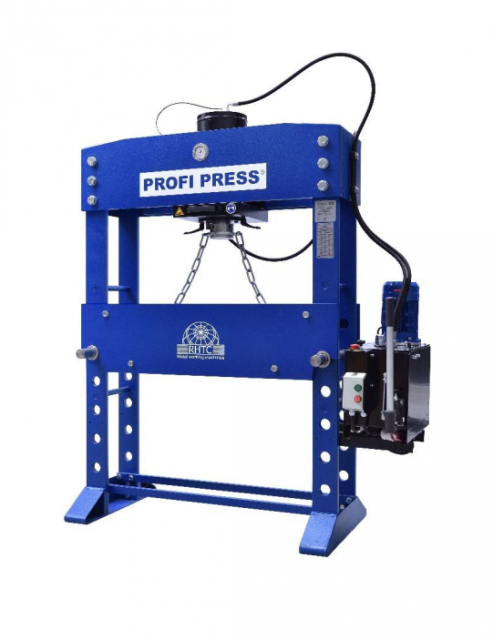

This 100 ton hydraulic press has an extra wide working width (1500 mm) for handling larger materials.

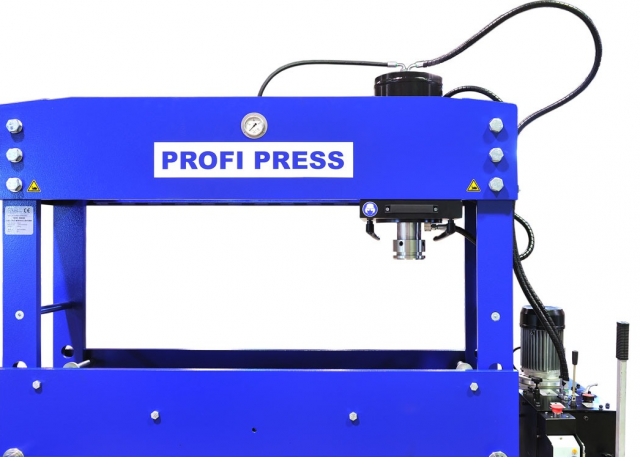

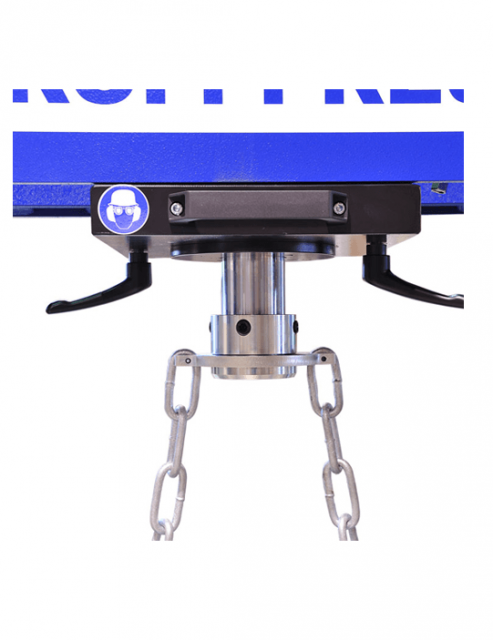

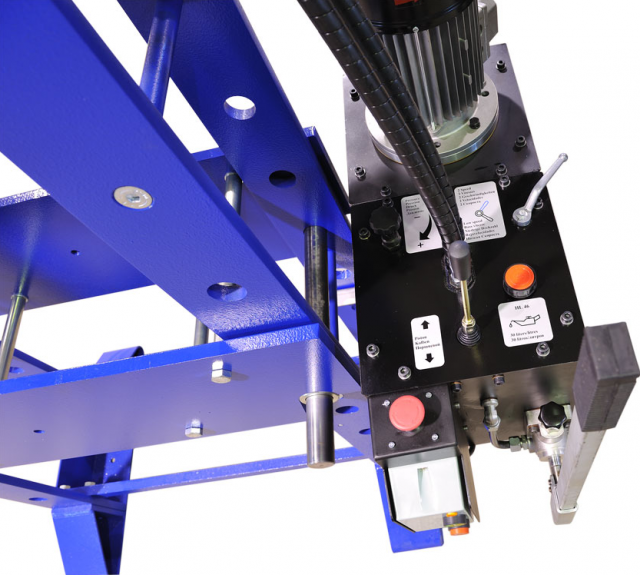

Equipped with a movable cylinder (left-right), in-height adjustable working table, pressure regulation, 2 speeds, joystick and a hand pump for precision pressing.
Our motorised workshop presses are exclusively made in the Netherlands and directly available from our stock.
Technical specifications
- Pressure force [kN]: 981
- Maximum pressure [bar]: 258
- Piston stroke [mm]: 380
- Oil delivery [ltr/min]: 5.64/17.2
- Oil capacity [dm³]: 46
- Working speed [mm/sec]: 2.47
- Approaching speed [mm/sec]: 7.54
- Return speed [mm/sec]: 9.06
- Motor power [kW]: 2.2
- Voltage [V]: 400/3
- Frequency [Hz]: 50/60
- Revolutions per minute [rpm]: 3000
- Insulation protection [IP]: 54
- Working width [mm]: 1500
- Weight [kg]: 1145
